Spline Plug and Spline Ring Gauges

GO and NO-GO spline gauges that confirm to ISO, DIN, AGMA, and JIS standards. Spline gauges can be manufactured from 0.3Module to 6Module having diameter range varies from 5mm up to 500mm. Spline gage profiles include involute, serration, and parallel (straight or helical).

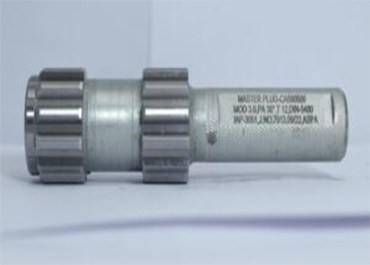

Full form GO ring gages for checking major diameters, minor diameters, and tooth thickness. Tapered tooth master plugs to check the wear of ring gauges.

We stand for quality, safety & credibility, so you could be trust us fully about architectural working process.

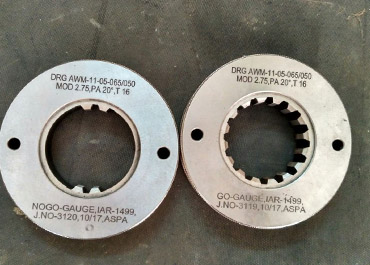

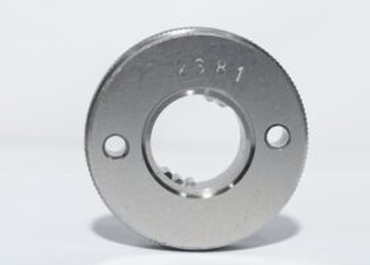

NoGo Composite Ring Gauges

Minimum effective tooth thickness - NoGo Composite Ring Gauges provide a basic check of the minimum effective tooth thickness of an external spline component.

No Go Composite Plug Gauges

Maximum effective space width -NoGo Composite Plug Gauges provide a basic check of the maximum effective space width of an internal spline component.

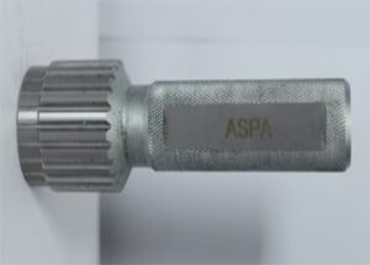

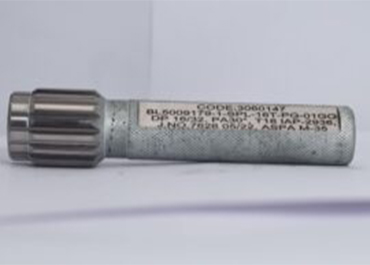

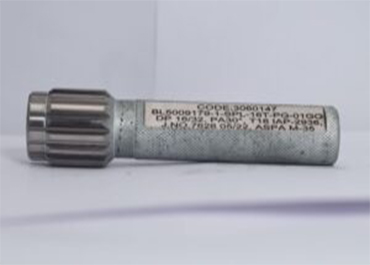

Go Composite Plug Gauges

Minimum effective space width - Go Composite Plug Gauges provide a basic check of the minimum effective space width of an internal spline component.

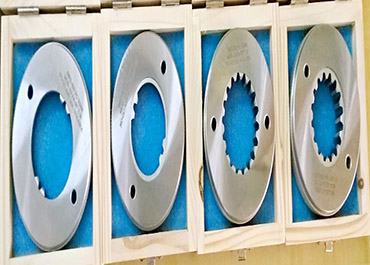

No Go Sector Ring Gauges

Minimum actual tooth thickness - NoGo Sector Ring Gauges provide a basic check of the minimum actual tooth thickness of an external spline component.

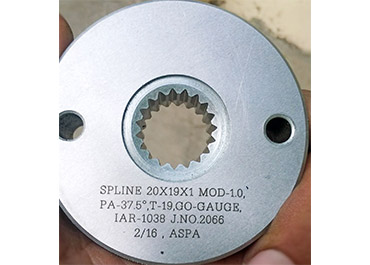

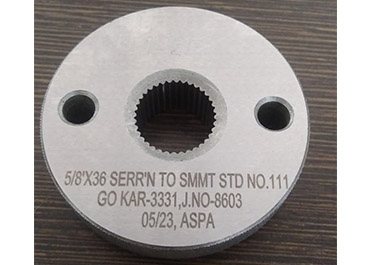

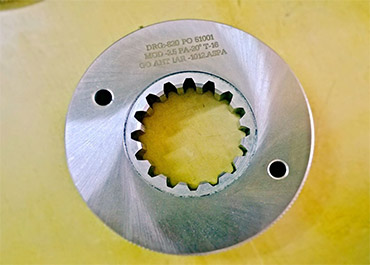

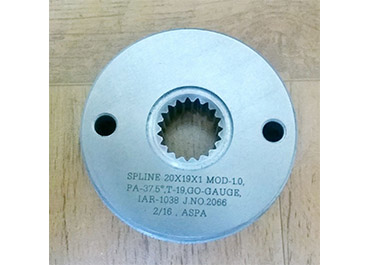

Go Composite Ring Gauges

Maximum effective tooth thickness - Go Composite Ring Gauges provide a basic check of the maximum effective tooth thickness of an external spline component.

Go Composite Plug Gauges

Minimum effective space width - Go Composite Plug Gauges provide a basic check of the minimum effective space width of an internal spline component.

NoGo Sector Ring Gauges

Minimum actual tooth thickness - NoGo Sector Ring Gauges provide a basic chec Privacy & Cookies Policy
